Equipment

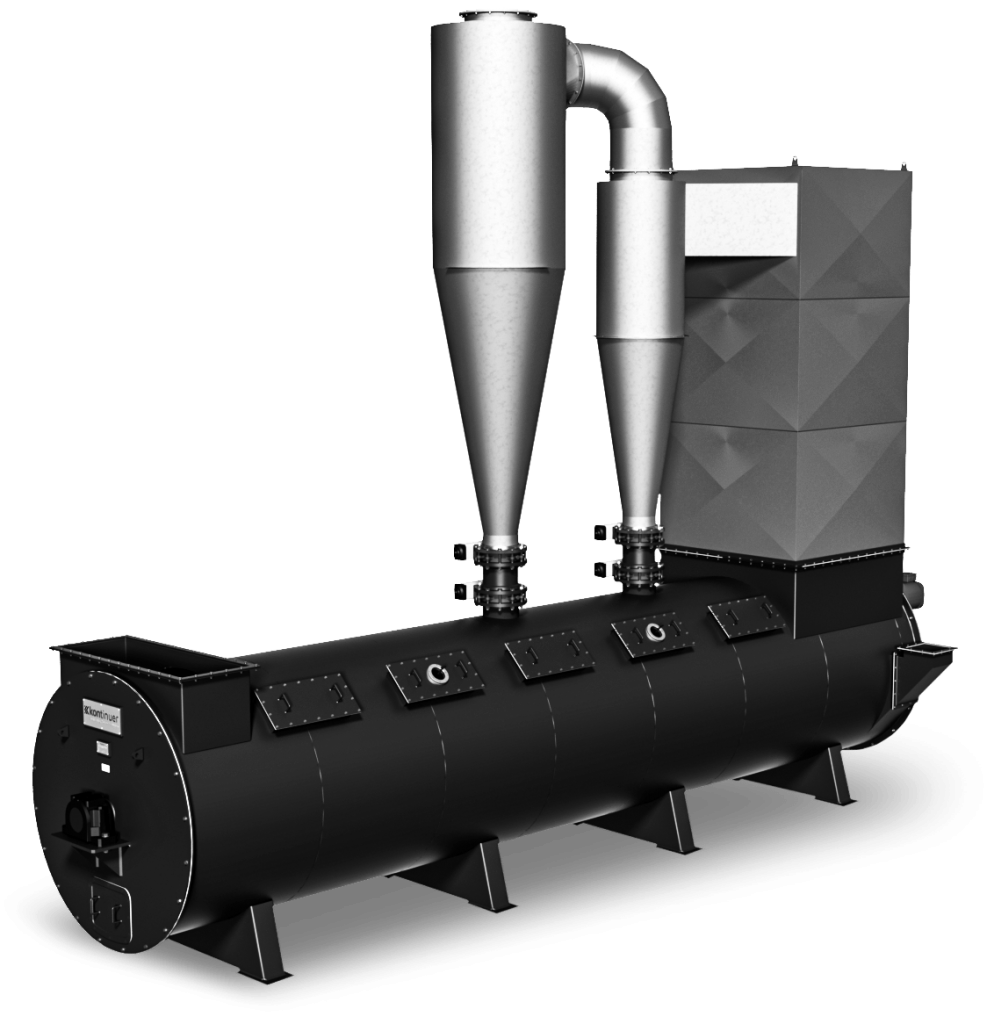

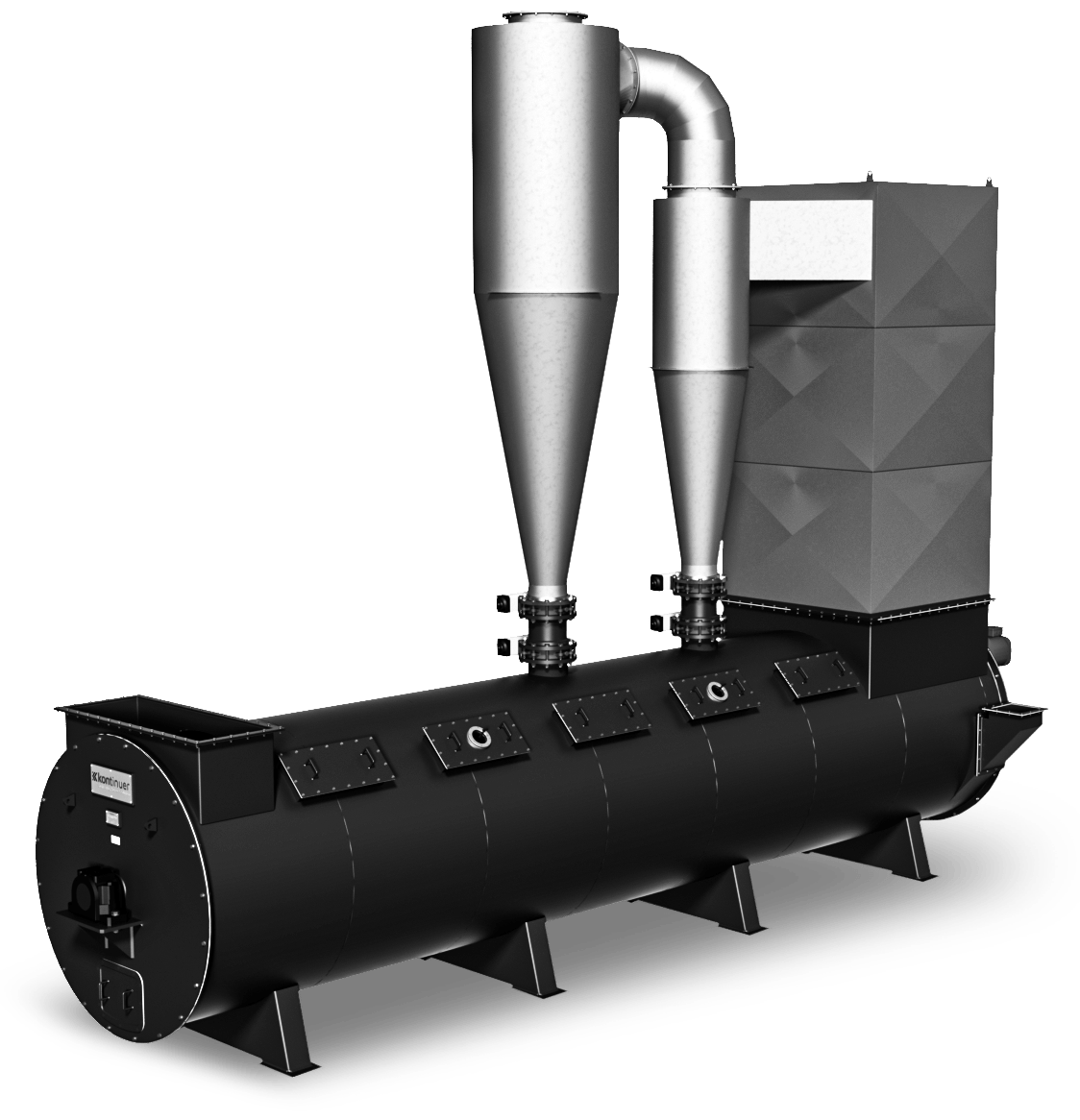

Meal Coolers

The Kontinuer Meal Coolers are designed to cool the meal after drying, pressing, or grinding. The equipment is composed of a cylindrical body and a shaft with stirring blades. The cooling occurs by the heat exchange between the counterflow of sucked air from the ambient and the meal, through the exhaust system. The MCD cooler is a robust equipment, with structure built in carbon steel and it can be built in stainless steel.

Kontinuer Advantages

  • High production capacity;
  • Overload safety systems;
  • Low maintenance and operational cost;
  • The filtration system with a sleeve filter and/or dual cyclone;
  • Comply with the requirements of the NR-12 standard.

Equipment flow

Meal of animal origin with high temperature.
Meal Coolers
Homogeneous and cooled meals of animal origin.

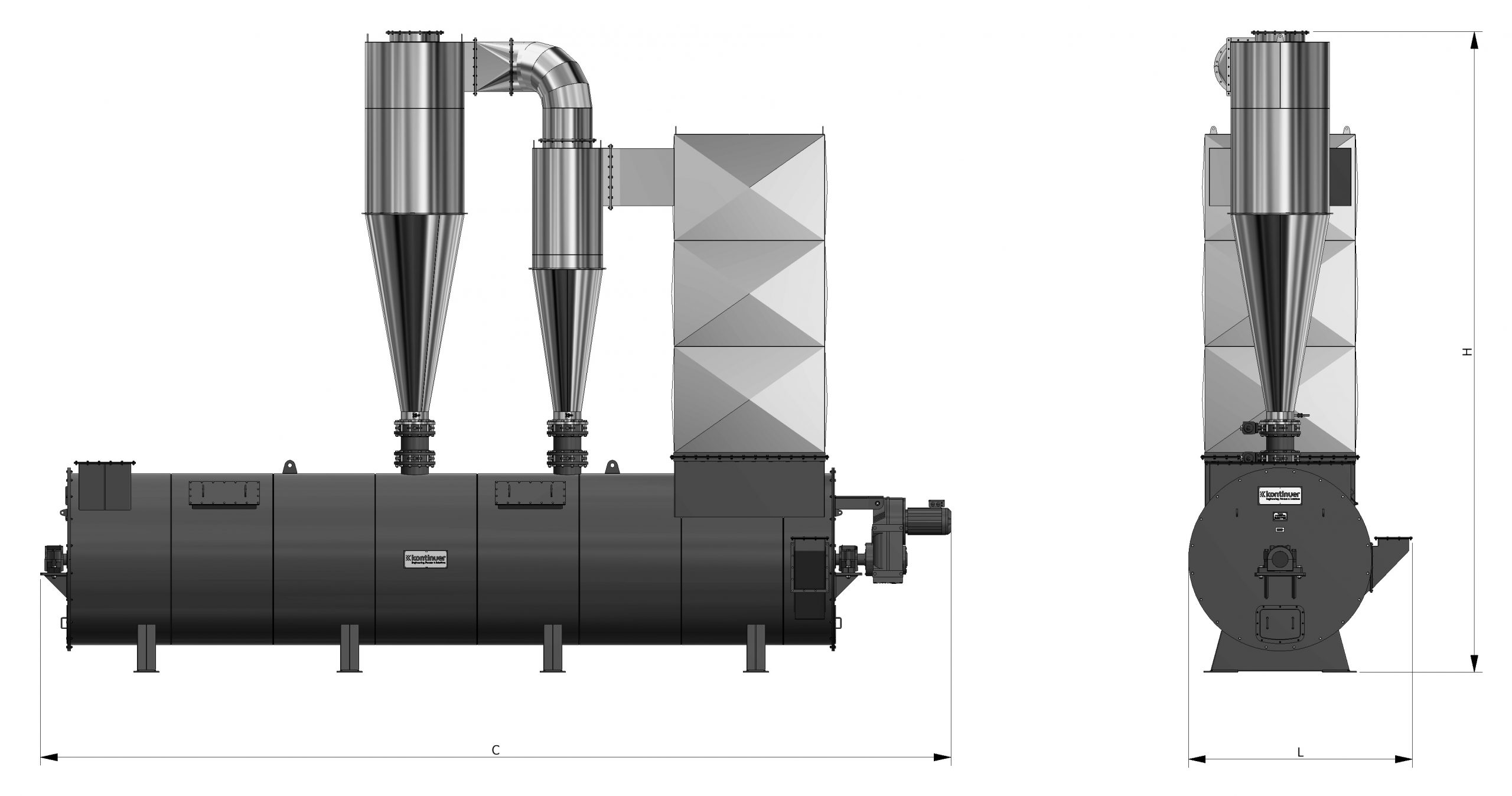

Technical specifications

Meal Coolers - Especificações Técnicas
MODEL CAPACITY (ton/h) POWER (kW) WEIGHT (ton) DIMENSIONS (mm)
L W H
MCD-01 1,0 11 + 7,5 3,0 5500 1800 1500
MCD-02 2,0 15 + 11 3,9 8000 2000 1600
MCD-04 4,0 22 + 15 5,1 10500 2500 2100
MCD-06 6,0 30 + 22 7,5 11500 2600 2300
MCD-10 10,0 55 + 30 10,6 13000 2600 2300
Download Technical Data Sheet
