Equipment

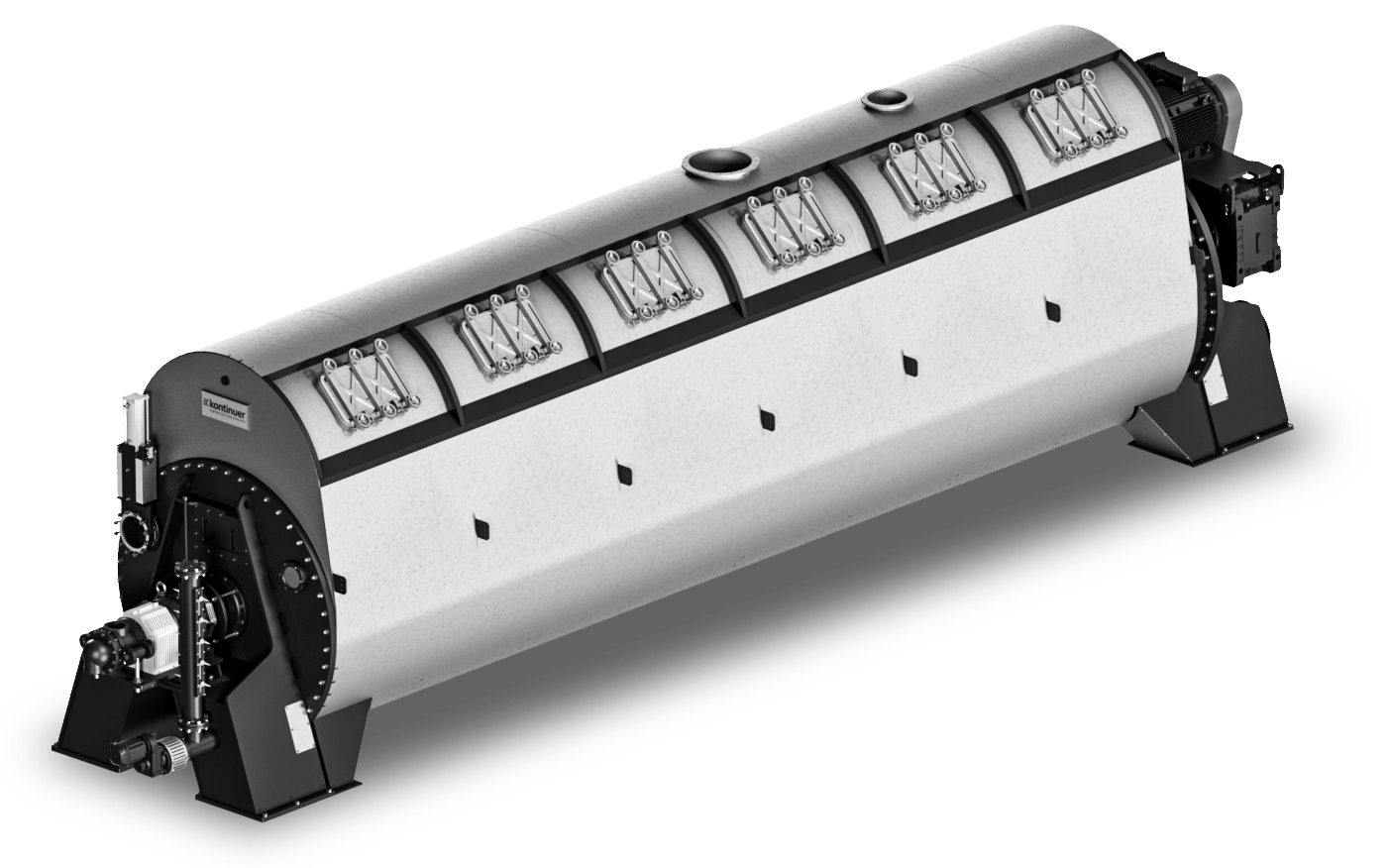

Continuous Cooker

The Kontinuer Continuous Cooker are highly efficient for cooking raw materials of animal origin and can be sized for small and large productions. The cooking method is based on the heat exchange between the product and a multitubular shaft, which is heated by the movement of saturated steam in its interior. An efficient purge system eliminates the condensate inside the shaft, ensuring maximum yield. The process ensures the homogeneity of the final product and low steam consumption.

Kontinuer Advantages

  • High evaporation capacity;
  • Fully automated system;
  • It can be used with raw materials of bovine or swine origin, in addition to poultry;
  • Rigid, resistant, and easily accessible for maintenance structure;
  • Comply with the requirements of the NR-12 standard.

Equipment flow

Crushed raw material of bovine and swine origin, or poultry with fat.
Continuous Cooker
Cooked or dry homogeneous material.

Technical specifications

Continuous Cooker - Especificações Técnicas
MODEL NOMINAL EVAPORATION (ton/h) POWER (kW) WEIGHT (ton) DIMENSIONS (mm)
L W H
DC-70 2450 45 20 9500 1900 2900
DC-100 3500 55 32,5 11650 2170 3080
DC-132 4620 75 40 13550 2310 3150
DC-200 7000 90 64 13650 2500 3500
DC-260 9100 132 90 14300 3000 4200
DC-320 11200 150 110 15500 3000 4200
DC-380 13300 185 120 16000 3400 4700
DC-440 15400 220 137 17500 3400 4700
Download Technical Data Sheet
