Equipment

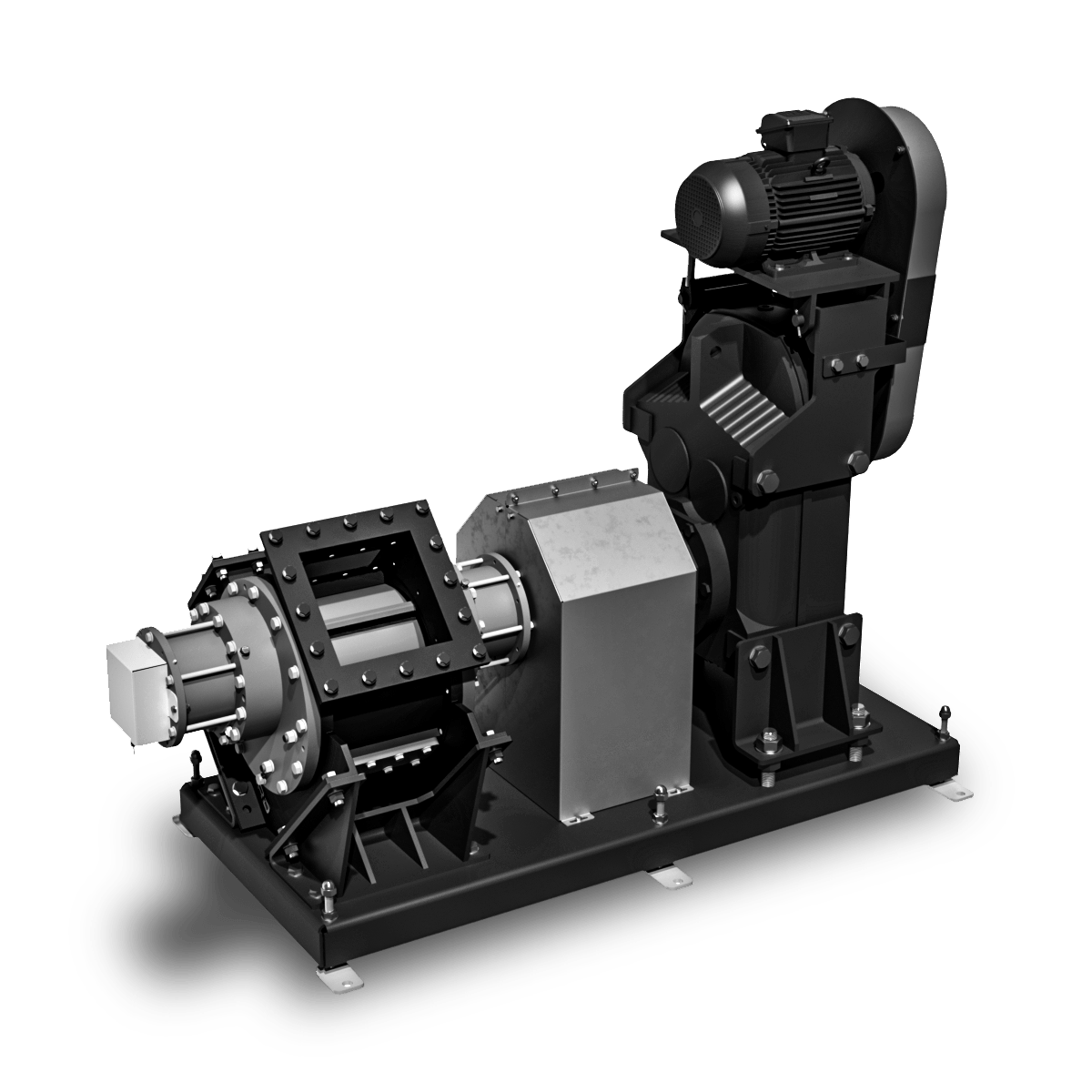

Lamella Pumps

Kontinuer Lamella Pumps transport the raw material with a high viscosity index, such as entrails and crushed bones, from pigs, cattle or whole carcasses from poultry and fish, except feathers. The transport is done in a pump, with a rotating blade movement, thus creating a positive offset. This Lamella pump system allows large quantities of materials to be transported for long distances using only one actuation. At the end of the process, valves installed in the tube extension clean the system, thus avoiding the accumulation of material between processing intervals.

Kontinuer Advantages

  • Clean and hermetic transport system;
  • Low energy consumption;
  • Transport of materials for short and long distances, with a single actuation;
  • Easy maintenance access;
  • Comply with the requirements of the NR-12 standard.

Equipment flow

Raw material with a high viscosity index, such as entrails and crushed bones, from pigs, cattle or whole carcasses from poultry and fish.
Lamella Pumps
Raw material preserved in their physical characteristics and hermetically transported.

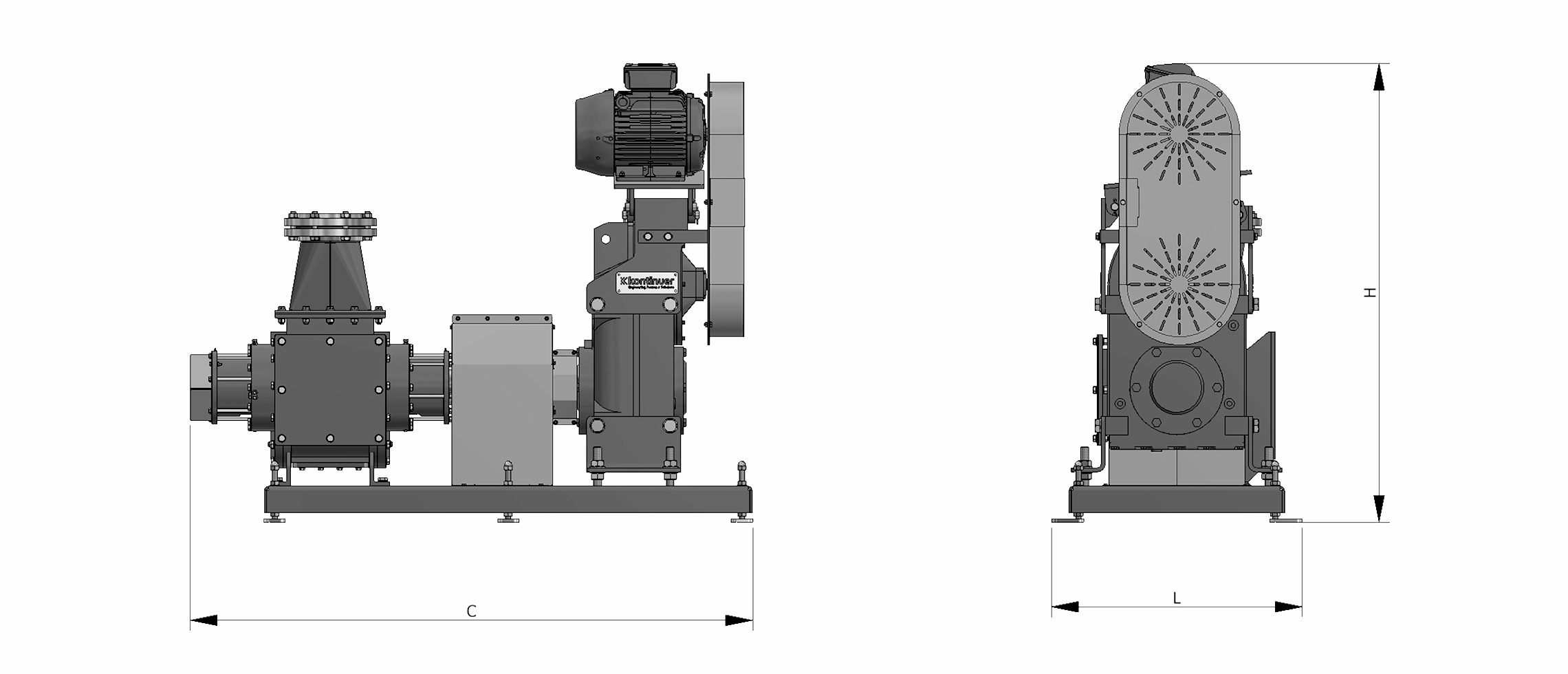

Technical specifications

Lamella Pumps - Especificações Técnicas
MODEL TRANSPORT CAPACITY (ton/h) POWER OVERALL DIMENSIONS (mm)
L W H
LAM-250 2 a 10 Por projeto 1900 850 1100
LAM-350 10 - 50 Por projeto 2700 1000 1700
LAM-450 50 - 200 Por projeto 3500 1200 1900
Download Technical Data Sheet
