Aerocondensers - Kontinuer

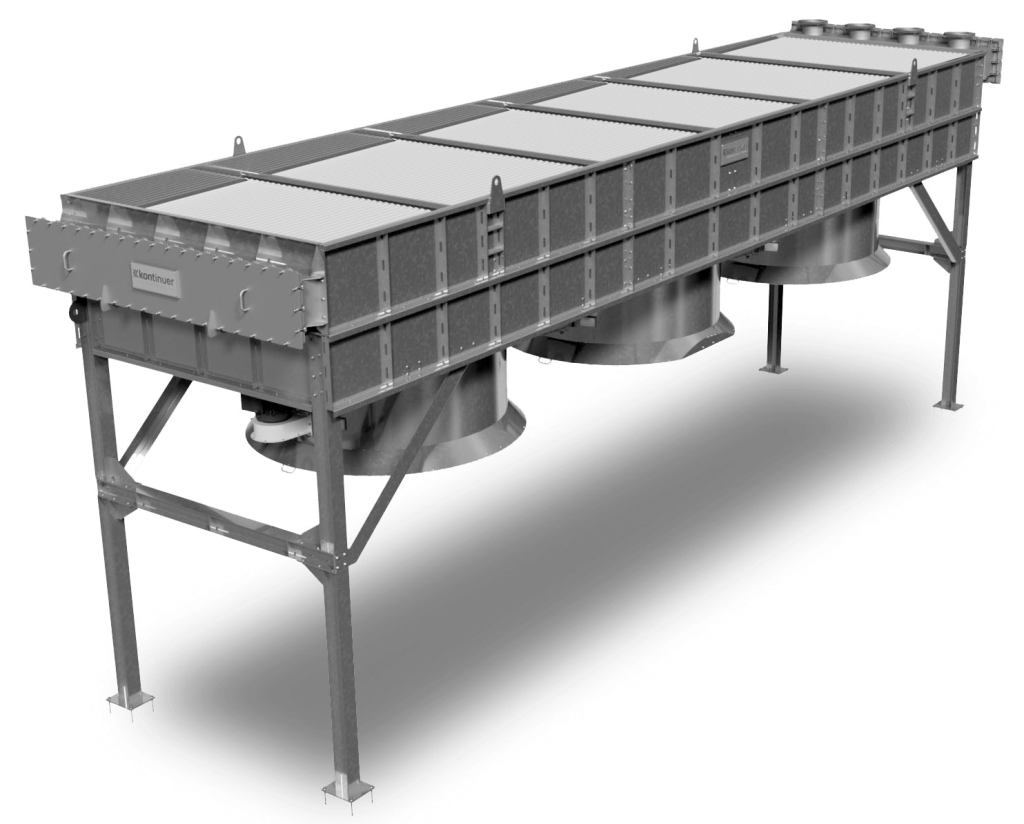

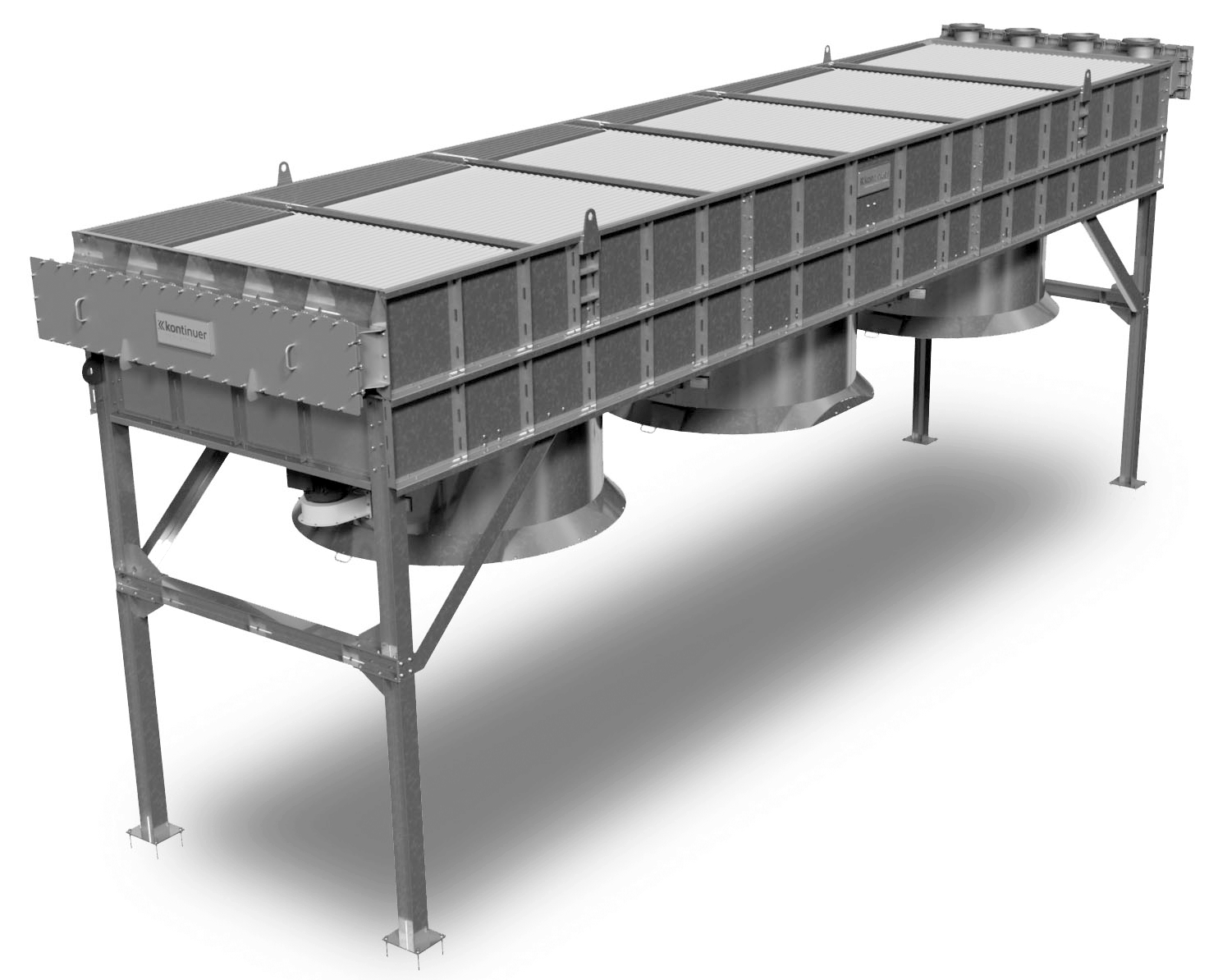

Kontinuer Aerocondensers use air flow at ambient temperature to condensate and cool gases from the cooking and drying process, thus reducing the level of odors. The process consists in the indirect heat exchange between process gases and ambient air flow generated by high flow ventilators. The gases are directed to the interior of stainless-steel tubes with aluminum fins, increasing the heat transfer area. After condensed, the residual water is extracted to a condensate tank.

Kontinuer Advantages

High condensation capacity;
They can be used to condense gases from digesters, dryers, evaporators, and other equipment that generate process vapor;
Condense and cool gases at a temperature of 10°C to 15°C above ambient temperature;
Low noise level;
Comply with the requirements of the NR-12 standard.

Equipment flow

Residual cooking or drying process vapors.

Condensed effluents at a temperature of 15°C to 20°C above ambient temperature.

Technical specifications

Aerocondensers - Especificações Técnicas

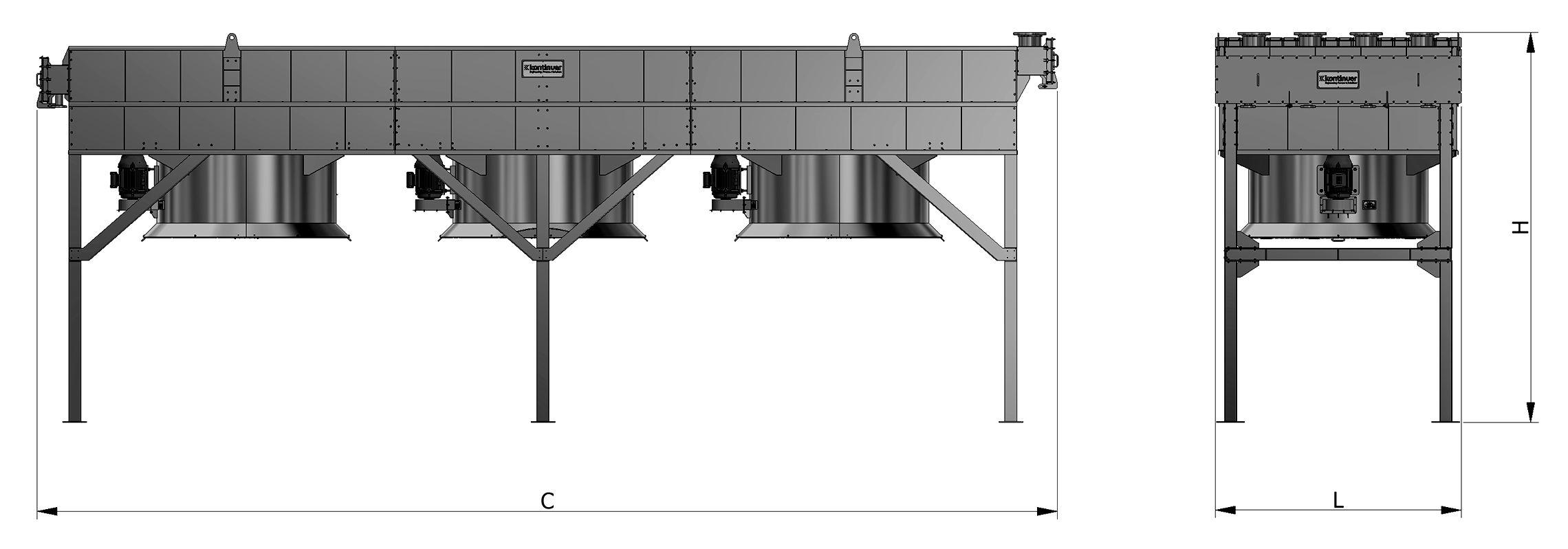

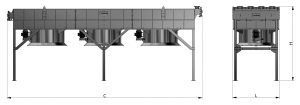

MODEL	CAPACITY (ton/h)		POWER (kW)	WEIGHT (ton)	DIMENSIONS (mm)
MODEL	CONDENSATION + COOLING	CONDENSATION	POWER (kW)	WEIGHT (ton)	L	W	H
ACC-1000	1,0	1,65	11,0	3,8	3100	2300	3800
ACC-2500	2,5	3,8	2 x 11,0	6,5	4800	2300	3800
ACC-3500	3,5	5,8	3 x 11,0	9,2	7200	2320	4200
ACC-4500	4,5	7,5	4 x 11,0	9,5	9500	2300	3800
ACC-5500	5,5	9,1	5 x 11,0	13,5	11300	2320	4300
ACC-7500	7,2	12,0	3 x 18,5	12,2	12700	3070	4800
ACC-10000	10,5	17,6	4 x 18,5	15,8	14000	4000	5000
